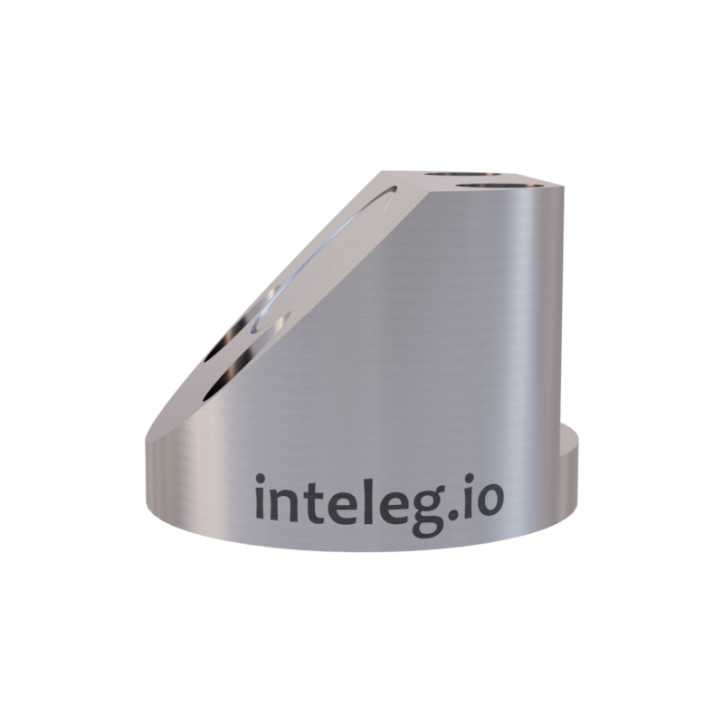

[90D-RC-D3427-FMUV] 90 Degree Mirror for High Vacuum, bolt-on, self-centering
Rugged, high-vacuum compatible, UV enhanced 90 degree mirror mount for harsh process environment
- Security policy
- Delivery policy
- General Terms and Conditions
- Warranty
- MPN
- 90D-RC-D3427-FMUV
Material : stainless steel
Clear aperture : 8 mm
Mirror : UV enhanced
Temperature : 250 deg. C
Vacuum use : high-vacuum
Wavelength range : 180 - 2500 nm
Interface 1 : 8 mm I.D. through hole
Interface 2 : 3/8-24 UNF internal thread
RoHS Compliant: Yes
Clear aperture : 8 mm
Mirror : UV enhanced
Temperature : 250 deg. C
Vacuum use : high-vacuum
Wavelength range : 180 - 2500 nm
Interface 1 : 8 mm I.D. through hole
Interface 2 : 3/8-24 UNF internal thread
RoHS Compliant: Yes
