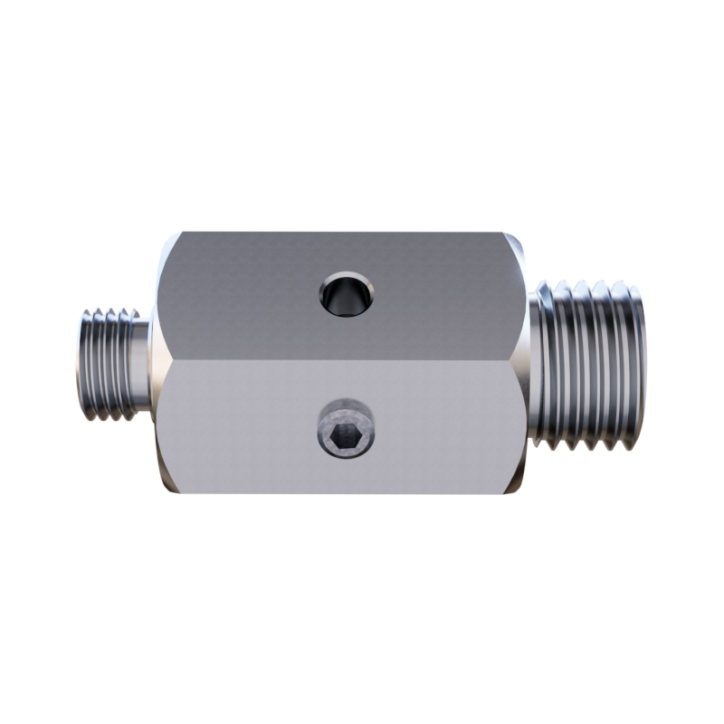

[CLM-060-FS-110] Collimating lens for high vacuum (Diameter : 6mm)
Rugged, high-vacuum compatible, UV-VIS-NIR range lens for harsh process environment
- Security policy
- Delivery policy
- General Terms and Conditions
- Warranty
- MPN
- CLM-060-FS-110
- Brand
- Inteleg
- Form-Fit-Function Equivalents
- -
- Warranty
- -
Material : stainless steel
Lens diameter : 6 mm
Lens material : UVFS
Temperature : 250 deg. C
Vacuum use : high-vacuum
EFL : 20 mm
Wavelength range : 180 - 2500 nm
Interface 1 : 3/8-24 external thread
Interface 2 : SMA905
Focus : Adjustable
RoHS Compliant: Yes
Lens diameter : 6 mm
Lens material : UVFS
Temperature : 250 deg. C
Vacuum use : high-vacuum
EFL : 20 mm
Wavelength range : 180 - 2500 nm
Interface 1 : 3/8-24 external thread
Interface 2 : SMA905
Focus : Adjustable
RoHS Compliant: Yes
