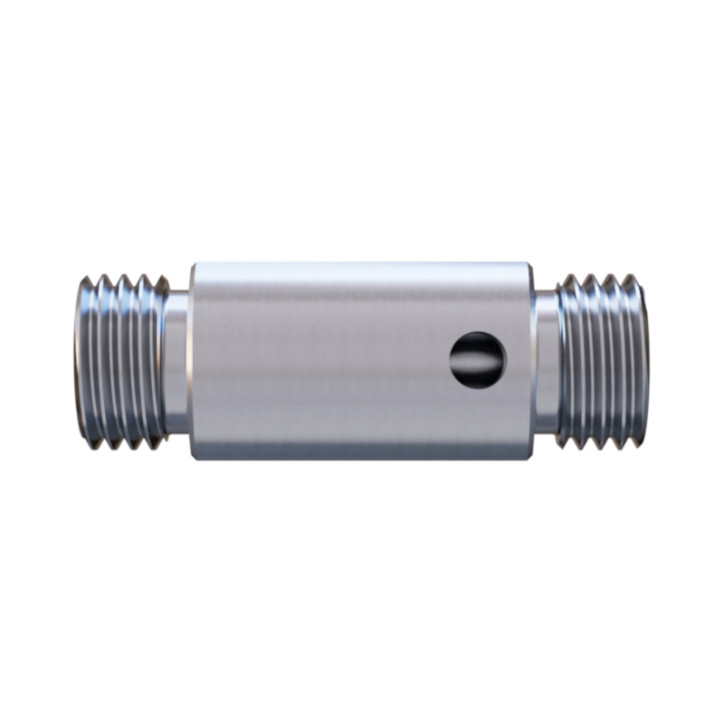

[CPLR-200-FSMA-FSMA-UHV] Precision SMA optical fiber coupler for UHV

Precision low signal loss SMA905 optical fibre coupler for ultra-high vacuum

Security policy

Delivery policy

General Terms and Conditions

Warranty

Description

MPN: CPLR-200-FSMA-FSMA-UHV

Material : stainless steel
Lenght : 20 mm
Temperature : 250 deg. C
Vacuum use : ultra-high vacuum
Interface 1 : SMA905 receptacle
Interface 2 : SMA905 receptacle
Mounting : 7mm flat surfaces
RoHS Compliant: Yes
